Products
C911 Dotcam
When budget constraints and size are of the utmost concern, the Dotcam provides you with an inspection tool at a very low cost. Rugged and reliable, the Dotcam can be used in a wide range of applications. The system incorporates a state - of - theart sensor that is fully automatic in its operation, providing high quality color pictures – even in low-lighting conditions the camera can switch over to supply monochrome images. The Dotcam is available in stainless steel with glanded cable or quick release connector depending on your project needs. All versions provide lighting with an integral white LED lighting ring and operate under water to a depth of 60 m (200 ft). With its ease of use, capability in low-light applications and extensive lens options, the Dotcam is an ideal “building block” for a wide range of inspection systems and can be easily adapted for specific tasks.

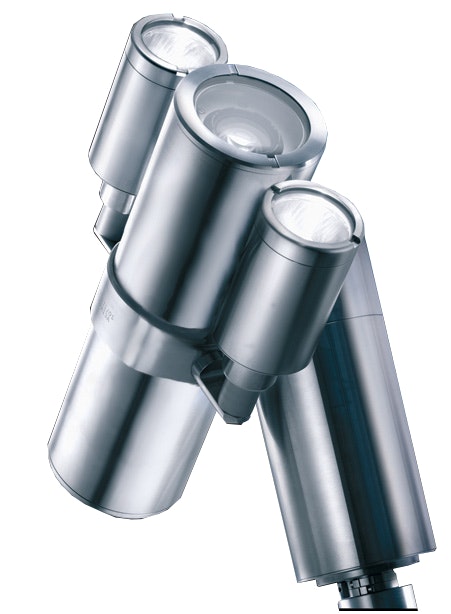

C981/C983
The C981 Compact camera range builds on the success of the standard C981 camera but offers a low radiation tolerant pan, tilt and zoom camera with a smaller sized envelope. Ideal for locating in areas where space is at a premium, we have combined the camera and pan and tilt into an integral unit and provided three positions for additional lights and microphone. The color CCD compact can be configured into multi-camera configurations, or a single camera system can be supplied.
Dotcam HR
The Mirion Dotcam HR is an innovative camera designed as an extremely easy-to-use, flexible device combining service proven reliability with higher radiation resistance. The Dotcam HR is a color video camera offering excellent reproducibility with low lag and high burn resistance and is not subject to distortion from magnetic fields.

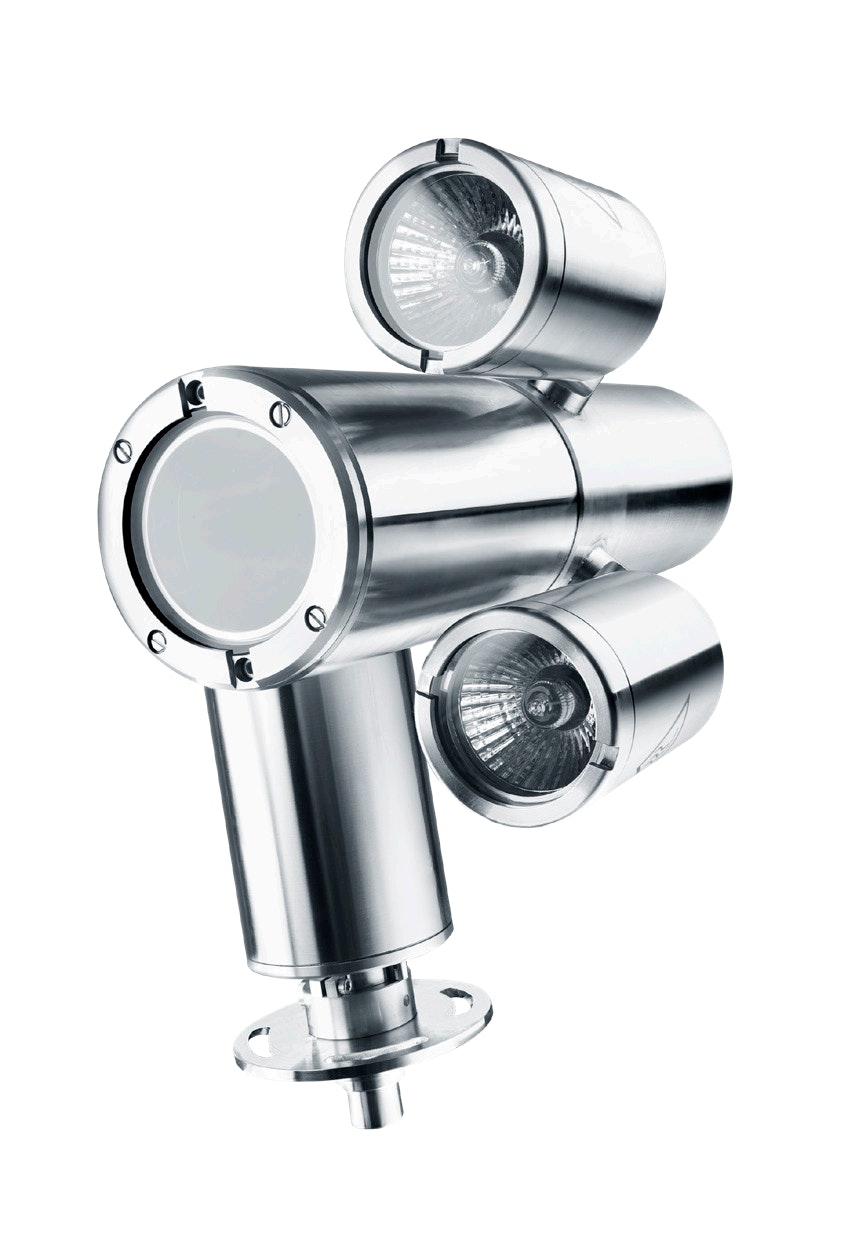

Hyperion Compact
The Hyperion Compact Gen II Camera follows many years of extensive Research and Development and considerable investment in new technologies. Featuring all new Radiation Tolerant zoom lens and optics with integrated pan and tilt, this new version offers all the benefits of the earlier generation Hyperion camera but in a lighter and more compact outstation. The Hyperion camera has been independently tested to 1 MGy with Cobalt-60 sources.

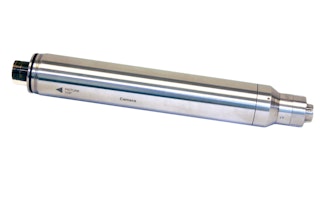

R93
Combining versatility, high radiation tolerance and wide-range viewing capabilities, the R93 Camera from Mirion is designed to meet your inspection needs.
The camera has been specifically designed for very high radiation area inspection requirements and features a rapidly removable outer housing for ease of service with minimal dose or contamination in support of ALARA goals. In addition, a number of optical viewing attachments can be affixed to the front of the camera without any tooling required to support alternate views to be obtained in tight places. When combined with our range of lenses that feature different viewing angles, the R93 becomes a versatile solution to your high radiation tolerant inspection needs.
R941
The R941 compact zoom camera from Mirion has been developed to provide a radiation tolerant zoom facility in a compact 55mm diameter case. The zoom facility comprises a non-browning 8 to 24mm, f/2.8 to f/16 zoom lens with all the optical functions (ie, focus, zoom, iris and macro) fully motorized to allow complete remote control via the R90 Mk 3 Camera Control Unit. Housed in a stainless steel case the R941 camera incorporates a zoom lens that can focus and track from 50mm to infinity.
R942
The R942 compact zoom camera from Mirion has been developed to provide a radiation tolerant zoom facility in a compact 76 mm diameter case. The zoom facility comprises of a non-browning 12 to 72 mm, f/1.8 to f/22 zoom lens with all the optical functions (i.e., focus, zoom, iris and macro) fully motorized to allow complete remote control via the R90™ Mk 3 Camera Control Unit. Housed in a stainless steel case the R942 camera incorporates a zoom lens that can focus and track from 50 mm to infinity.
R981 Compact
The R981 CompactTM camera range builds on the success of the standard R981TM but offers a full radiation tolerant pan, tilt and zoom camera with a smaller sized envelope. Ideal for locating in areas where space is at a premium, we have combined the camera and pan and tilt into an integral unit and provided three positions for additional lights and microphone. The R981 CompactTM can be configured into multi camera configurations, or a single camera system can be supplied.

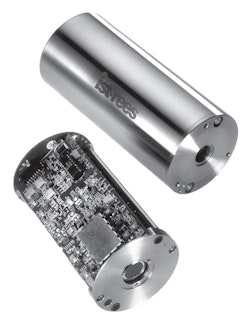

R985
The IST-Rees™ R985 camera module from Mirion has been specifically developed for single unit camera applications in the nuclear industry. By incorporating radiation tolerant video circuitry and the image sensor, the module provides high quality pictures over an extended life in medium to high radiation environments. Numerous custom units have been developed (i.e., shorter versions, sealed versions, a “power-down video” version, etc.), as well as a range of non-browning custom lenses.
